HAMAMATSU 滨松 EQ-99X-QZ-S 激光驱动光源 (LDLS)
EQ-99X-QZ-S 是一款标准的 LDLS 模型，具有分束光学接口。它采用紧凑型灯头，发热量低，非常适合在狭小的空间中进行实验或安装到设备中。灯头设计为通过自然对流制冷，从而消除了制冷风扇引起的振动，并确保高度稳定的光输出。
特点
Extremely broad wavelength range：170 nm to 2500 nm
Long lifetime：10 000 hours
High radiance from a small plasma

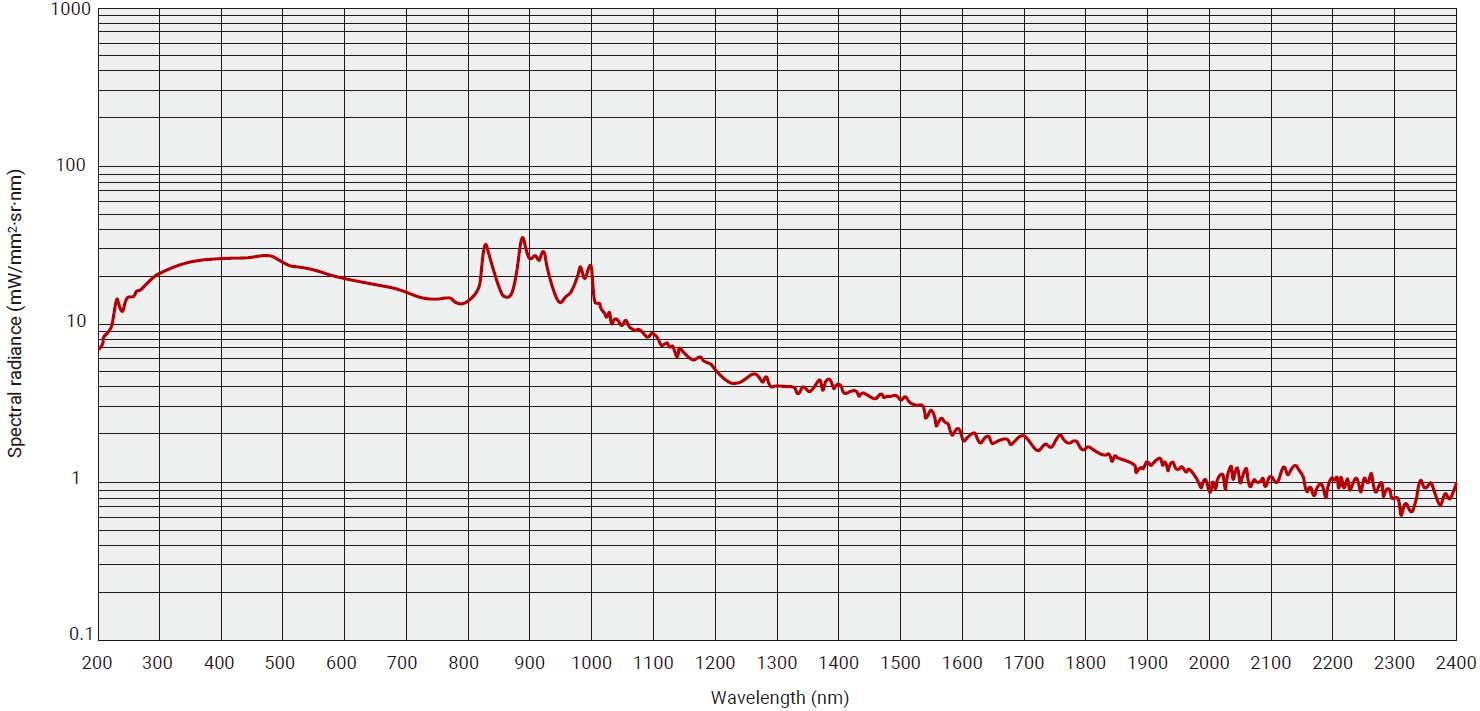

光谱辐射照度
详细参数
| Parameter | Description / Value | Unit |
|---|
| Optical interface | Diverging beam | － |
| Wavelength range | 170 to 2500 | nm |
| Plasma size (FWHM) | Typ. | 100 × 180 | μm |
| Numerical aperture | NA | 0.47 | － |
| Lifetime*1 | Typ. | 10 000 | h |
| Warm-up time | 30 | min |
| Laser class | Class 1 | － |
| Spectral radiance(at 500 nm) | Typ. | 25 | mW/mm2·sr·nm |
| Broadband optical power | Typ. | 0.75 | W |
| Output window size | Φ22 | mm |
| Window material*2 | Quartz | － |
| Cooling method | No auxiliary cooling required | － |
| Nitrogen purge | Recommended. Grade 4.8 or higher, filtered to 5 μm. 20 psiG ±2 psiG | － |
| Applicable standards | EN 61010-1
EN 61326-1
IEC 60825-1
IEC 62471
EN 50581 | － |
| Device configuration*3 | Lamphead, Power supply controller, Remote control, Necessary cables | － |
| Power rating | Input voltage (AC) | 100 to 240 | V |
| Power frequency | 50 / 60 | Hz |
| Power consumption | 175 | W |
*1 Windows may need to be replaced depending on the extent of contamination and usage conditions.
*2 MgF2 (170 nm to 2500 nm), YAG (190 nm to 2500 nm) and BK7 (350 nm to 2500 nm) windows are also selectable as options.
*3 The configuration is different for sales to Japan. Please contact us for details.

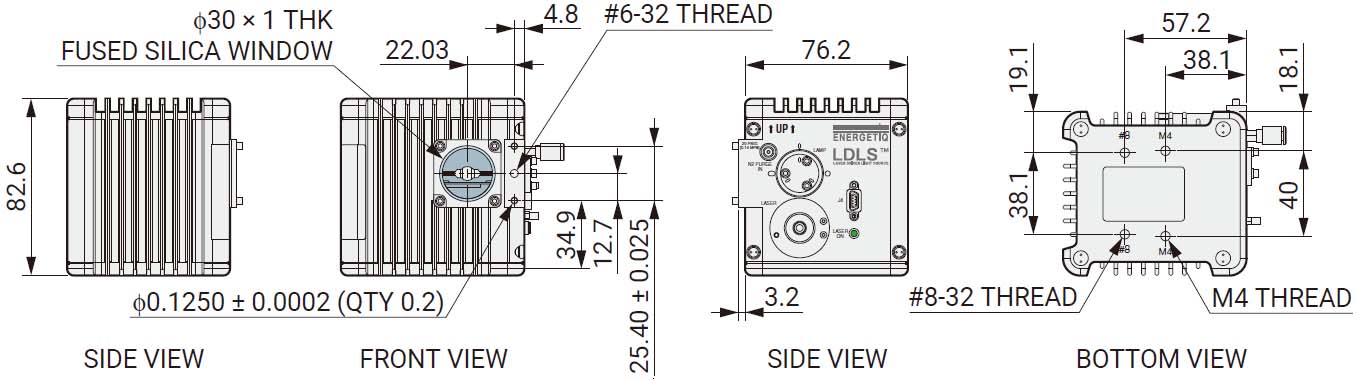

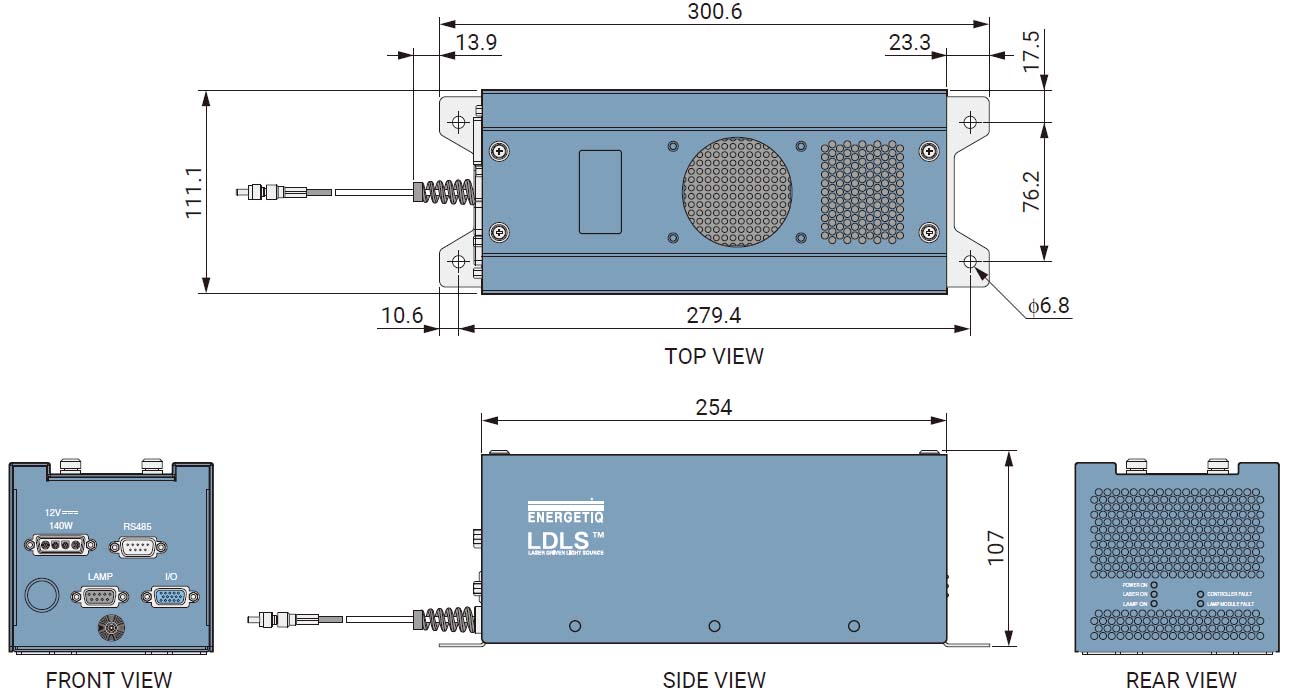

外形尺寸图（单位：mm）
