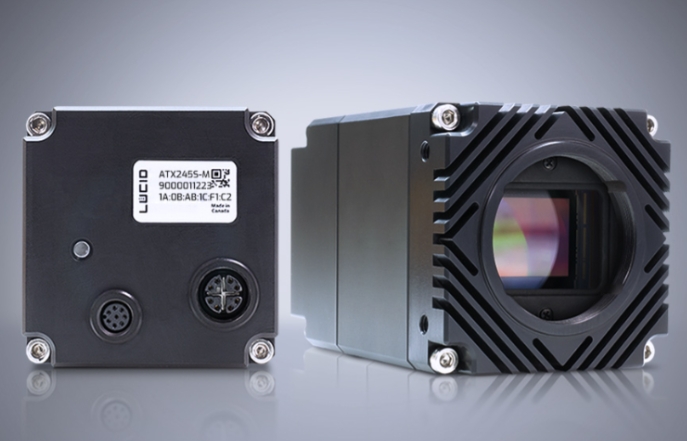

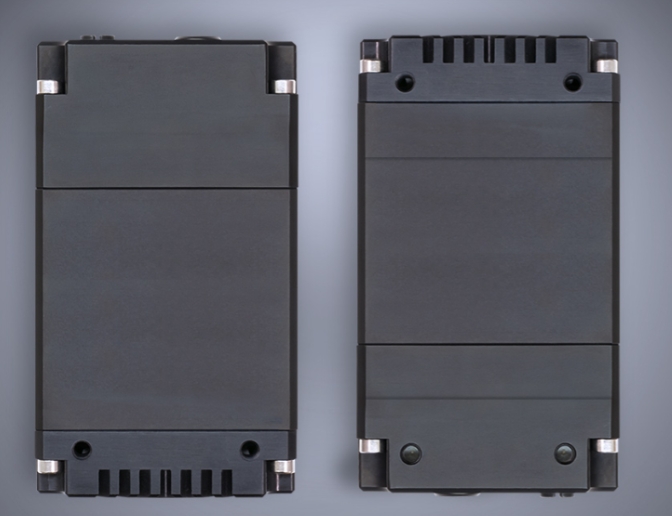

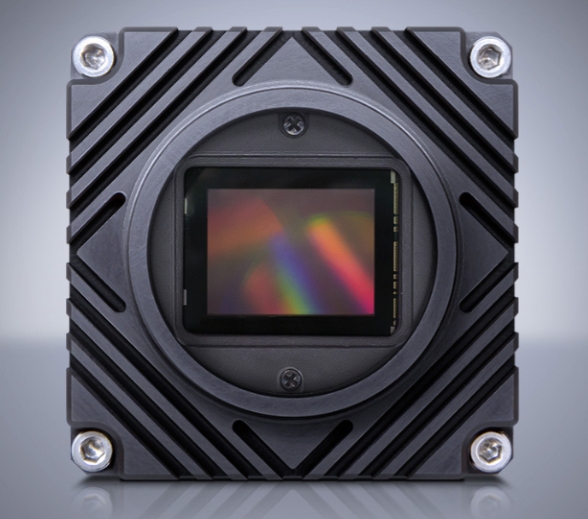

LUCID ATX470S 工业相机
| 传感器特性 |
|---|
| 名称 | Sony IMX492 CMOS | | 快门 | Rolling with Global Reset | | 靶面尺寸 | 23.1 mm (Type 1.4″) | | 分辨率 | 8192 x 5556 px, 47 MP | | 像元尺寸 | 2.315 µm (H) x 2.315 µm (V) | | 帧率 | 22.6 @ 47 MP (10 bit ADC mode)
15.5 FPS @ 47 MP (12 bit ADC mode)
|
| 物理特性 |
|---|
| 尺寸 | 55 x 55 x 95.5 mm | | 镜头接口 | TFL-Mount | | 重量 | 325 g |
| 接口和电源信息 |
|---|
| 数据接口 | 10GBASE-T (10GigE), 5GBASE-T (5GigE), 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE | | 数字I/O | 8 pin M8 connector | | 路光耦隔离I/O | 1 input, 1 output | | 路双向可配置非隔离I/O | 2 bi-directional | | 功率要求 | PoE+ (IEEE 802.3at), or 12-24 VDC external | | 功耗 | <12W via PoE+, 11.5W when powered externally |
| 成像特性 |
|---|
| 缓存容量 | 380 MB | | Image Processing | Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion | | 数据格式 | Mono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411 | | Image Modes | Horizontal and vertical binning, decimation, ROI | | ADC | 8, 10, 12 bit | | 增益范围 | 0 dB to 48 dB analog and digital | | 曝光时间范围 | TBD |
| 相机功能 |
|---|
| User Sets | 1 default and 2 custom user set | | File System Size | 16 MB | | Chunk Data | Timestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set | | Event Data | Exposure start/end | | Counter & Timer | 2 counters and 2 timers | | Sequencer | Exposure time, gain | | Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| 标准和认证 |
|---|
| 兼容 | GigE Vision v2.0 | | 认证 | CE, FCC, RoHS, REACH, WEEE | | 存储温度 | -30 to 60°C | | 工作温度 | -20 to 55°C | | 湿度 | Operating: 20% ~ 80%, relative, non-condensing | | 冲击和振动标准 | DIN EN 60068-2-27, DIN EN 60068-2-64 | | 保修 | 3 year |
