NEWPORT 优铂特 OD8-DCL659-D ODiate® Fluorescence Dichroic Beamsplitters

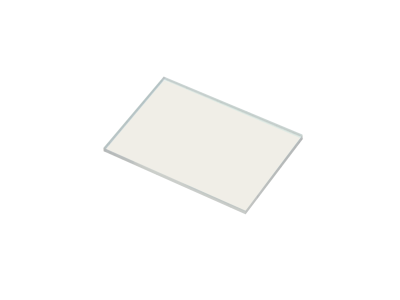

ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 659 nm 50% Cut-on Edge Wavelength
The OD8-DCL659-D Dichroic Beamsplitter is specified to reflect the excitation and transmit the emission of Cy5™ and supports similar alternative fluorophores, designed in conjunction with OD8-EX626-52-B and OD8-EM693-56-B . The filter is manufactured to provide maximum signal and sensitivity delivering exceptionally high excitation passband refleciton ≥ 98% avg and emission passband transmission ≥ 96% avg for a 659 nm 50% Cut-on edge wavelength. Alternate Fluorophores
In addition to Cy5™ the following fluorophores are also compatible with this set: Abberior STAR 635, Abberior STAR RED, Alexa Fluor® 647, Alexa Fluor® 660, APC, ATTO 635, ATTO 647, ATTO 655, BODIPY® 650/665-X, C5-Thiacyanine, Carboxynapthofluorescein, CellMask Deep Red, CF 640R, CF 647, DiD, DRAQ5, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue-30, FluoSpheres® Dark Red, HCS CellMask Deep Red, HCS NuclearMask Deep Red, HiLyte Fluor 647, HiLyte Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), NirFP, Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTO® 60, SYTO® 62, Vybrant® DyeCycle Ruby.
Optimized Coatings and Engineering Expertise
Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.
Environmental Stability and Physical Durability
The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.
参数类型 Fluorescence Dichroic Beamsplitter 起始/截止波长 658.5 nm (50%) 反射波段 ≥98% avg, 603-650.5 nm
≥98% avg, 375-650.5 nm 透射带 ≥96% avg, 666.5-717 nm
≥95% avg, 666.5-900 nm 透射光束偏移 ≤ 1 wave PV @ 632.8 nm 入射角 45°±1.5° Cone Half-angle < 2° 材料 Fused Silica 尺寸 25.2 x 35.6 mm 尺寸公差 ±0.1 mm
清洁 See How to Clean Optics
