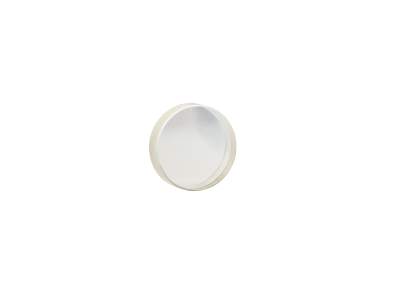

NEWPORT 优铂特 10Q20NC.UV 宽带光束采样器
紫外宽带光束采样片,UVFS,25.4 mm,λ/10,255-440 nm
10Q20NC.UV 宽带光束采样片的直径为1.0英寸(25.4毫米),厚度为6.10毫米,是表面平坦度为λ/10的紫外熔融石英光束采样片。它的背面镀有255-440 nm的增透膜。我们的宽带光束采样片设计用于通过菲涅耳反射分离或采样光束,用于需要最小传输光束干扰的光束监测应用。
参数
波长范围
255-440 nm
直径
25.4 mm
材料
UV Grade Fused Silica
增透膜
NC.UV (Ravg < 1% @ 255-440 nm)
入射角
45°
损伤阈值
1.0 J/cm2 with 10 nsec pulses, 10 Hz @ 266 nm, typical
表面平面度
≤λ/10 at 632.8 nm over the clear aperture
表面质量
15-5 scratch-dig
直径公差
+0/-0.13 mm
厚度
6.1 mm
厚度公差
±0.38 mm
楔形
30 ±15 arc min
通光孔径
> central 80% of diameter
倒角
0.25-0.76 mm face width
倒角公差
45° ±15°
耐用性
MIL-C-675C, adhesion, abrasion and solubility
清洁
See How to Clean Optics
基板编号
10Q20
