NEWPORT   优铂特      10BC15PH.4     高能量 Nd:YAG 偏光立方体分光镜

品牌: NEWPORT优铂特
型号: 10BC15PH.4
产品详情

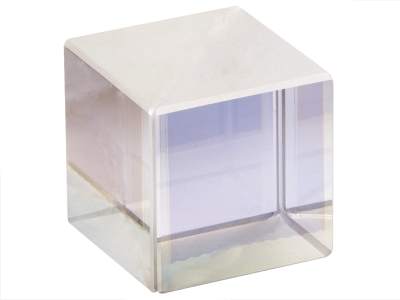

NEWPORT   优铂特      10BC15PH.4     高能量 Nd:YAG 偏光立方体分光镜



偏振立方体分束器,高能量 Nd:YAG,25.4 mm,355 nm




The 10BC15PH.4 High-energy Polarizing Cube Beamsplitter provides efficient narrowband polarization for use with Nd:YAG lasers. Each polarizer consists of a pair of precision right-angle prisms optically contacted together. No cement is used. Optimized for 355 nm, a damage threshold of up to 5 J/cm2 with 10 ns pulse at 266 nm is achievable. This high-energy polarizing cube beamsplitter is 25.4 x 25.4 x 25.4 mm and can be conveniently mounted on Newport holders.




参数

  • 波长范围
    355 nm
  • 尺寸
    25.4 x 25.4 x 25.4 mm
  • 形状
    Cube
  • 材料
    UV Grade Fused Silica
  • 涂层类型
    Laser line polarizing
  • 涂层代码
    PH.4
  • 增透膜
    Multilayer broadband dielectric
  • 入射角
    0°±5°
  • 方向
    To avoid damage, beam should enter prism marked with a dot
  • Reflection
    Rs >99%
  • 反射光束偏转角度
    90° ±5 arc min
  • 透射
    Tp >90%
  • 透射光束偏移
    ≤3 arc min
  • 消光比
    Tp/Ts >200:1
  • 波前畸变
    ≤λ/4 at 632.8 nm over the clear aperture
  • 表面质量
    20-10 scratch-dig
  • 表面平面度
    ≤λ/4 at 632.8 nm
  • 损伤阈值
    5 J/cm2 with 10 nsec pulses @ 266 nm, typical
  • 通光孔径
    >80% of central dimension
  • 尺寸公差
    ±0.254 mm
  • 工作温度范围
    -50 to 90°C
  • 耐用性
    MIL-C-675C, moderate abrasion million cycles
  • 清洁
    See How to Clean Optics
