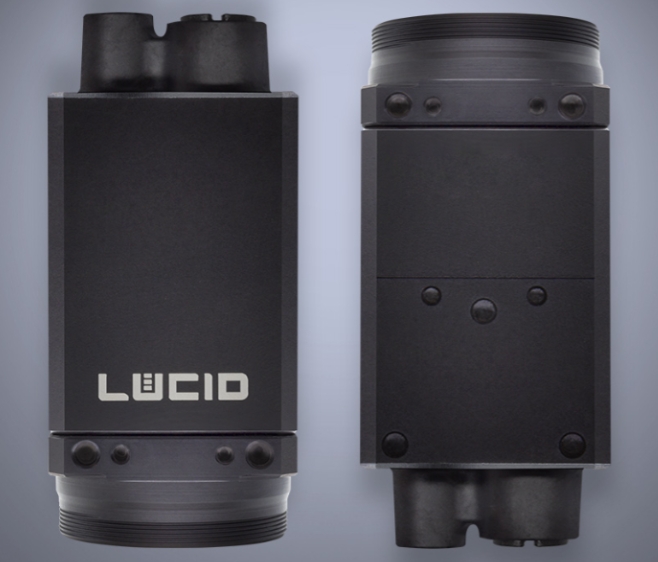

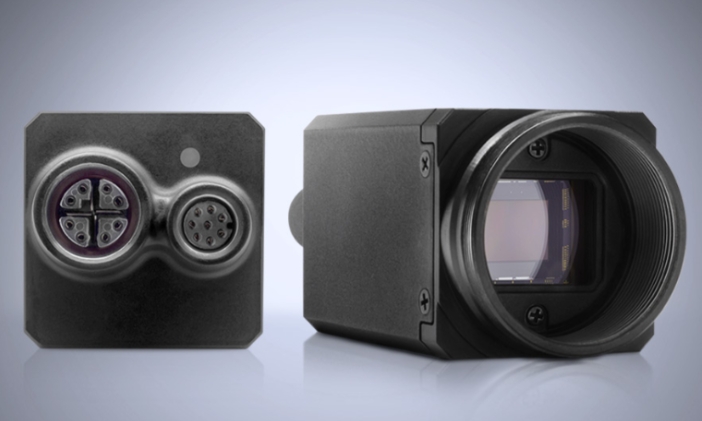

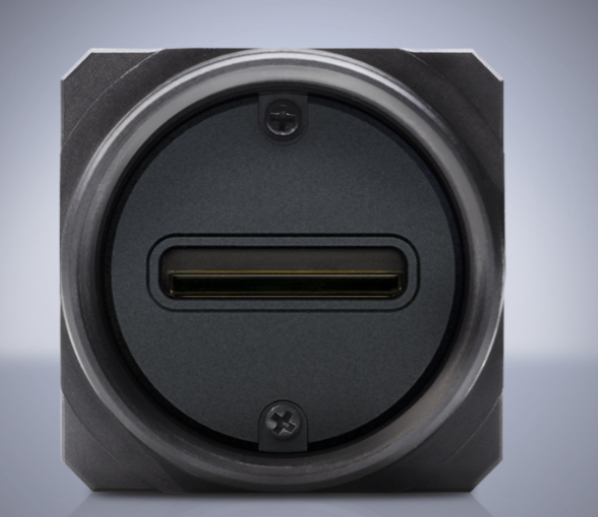

LUCID TRI02KA 工业相机
| 传感器特性 |
|---|
| 名称 | AMS Dragster DR-2k-7 CMOS |
| 快门 | Global |
| 靶面尺寸 | 14.3 mm |
| 分辨率 | 2048 x 1 px |
| 像元尺寸 | 7.0 µm (H) x 7.0 µm (V) |
| 最大行频 | 60 kHz |
| 物理特性 |
|---|
| 尺寸 | 29 x 29 x 45 mm |
| 镜头接口 | C-Mount |
| 重量 | 67 g |
| 接口和电源信息 |
|---|
| 数据接口 | 1000BASE-T GigE M12, PoE |
| 数字I/O | 8 pin M8 connector |
| 路光耦隔离I/O | 1 input, 1 output |
| 路双向可配置非隔离I/O | 2 bi-directional |
| 功率要求 | PoE (IEEE 802.3af), or 12-24 VDC external |
| 功耗 | 3.25W via PoE, 2.6W when powered externally |
| 成像特性 |
|---|
| 缓存容量 | 380 MB |
| Image Processing | Gain, gamma, black level, LUT, flat field correction |
| 数据格式 | Mono8/16, Mono12p, Mono12Packed |
| Image Modes | Horizontal and vertical binning |
| ADC | 10 / 12 bit |
| 增益范围 | 0 dB to 24 dB analog and digital |
| 曝光时间范围 | 2 μs to 9.9ms |
| 转换增益 | Normal and High Mode (High: 4x in analog domain) |
| 相机功能 |
|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Offset X, width/height, pixel format, exposure time, gain, black level |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Exposure time, gain |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| 标准和认证 |
|---|
| 兼容 | GigE Vision v2.0 |
| 认证 | CE, FCC, RoHS, REACH, WEEE |
| 存储温度 | -30 to 60°C |
| 工作温度 | 0 to 55°C |
| 湿度 | Operating: 20% ~ 80%, relative, non-condensing |
| 冲击和振动标准 | DIN EN 60068-2-27, DIN EN 60068-2-64 |
| 保修 | 3 year |
