传感器特性

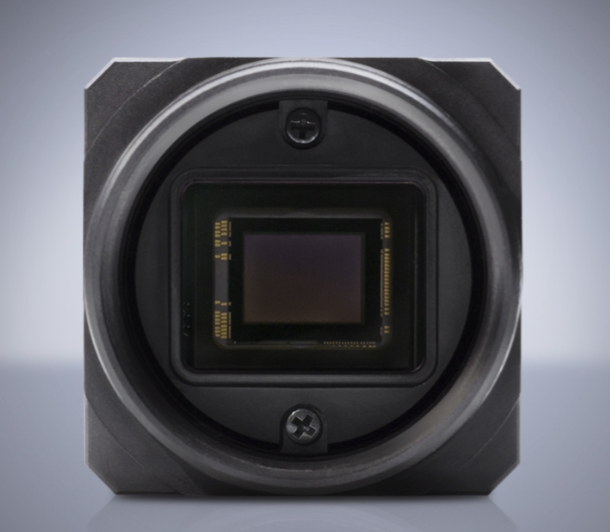

名称Sony IMX226 CMOS
快门Rolling shutter with global reset
靶面尺寸9.33 mm (Type 1/1.7″)
分辨率4024 x 3036 px, 12.2 MP
像元尺寸1.85 µm (H) x 1.85 µm (V)
帧率*9.1 FPS (9.8 FPS) @ 12.2 MP
物理特性

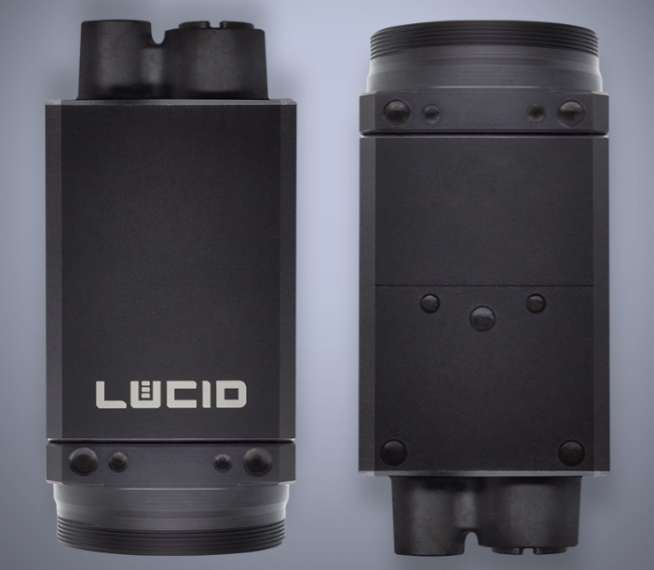

尺寸29 x 29 x 45 mm
镜头接口C-Mount
重量67 g
接口和电源信息

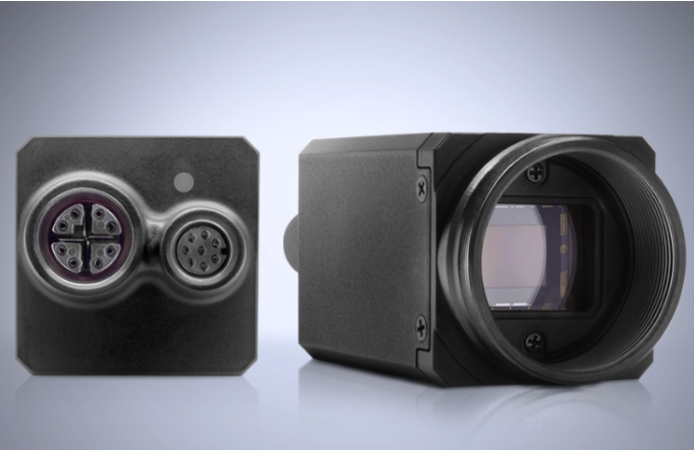

数据接口1000BASE-T GigE M12, PoE
数字I/O8 pin M8 connector
路光耦隔离I/O1 input, 1 output
路双向可配置非隔离I/O2 bi-directional
功率要求PoE (IEEE 802.3af), or 12-24 VDC external
功耗3.1W via PoE, 2.5W when powered externally
*最大帧率基于10%的 “设备链路吞吐量储备”，用于重新发送数据包。括号（）中的FPS是基于0%的 “设备链路吞吐量储备”。LUCID建议为数据流可靠性保留10%。
成像特性
缓存容量128 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
数据格式Mono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411
Image ModesHorizontal and vertical binning, ROI, horizontal and vertical flip
ADC12 bit
增益范围0 dB to 48 dB analog and digital
曝光时间范围30 μs to 10 s
相机功能
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataTimestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataAcquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
标准和认证
兼容GigE Vision v2.0
认证CE, FCC, RoHS, REACH, WEEE
存储温度-30 to 60°C
工作温度-20 to 55°C
湿度Operating: 20% ~ 80%, relative, non-condensing
冲击和振动标准DIN EN 60068-2-27, DIN EN 60068-2-64
保修3 year
