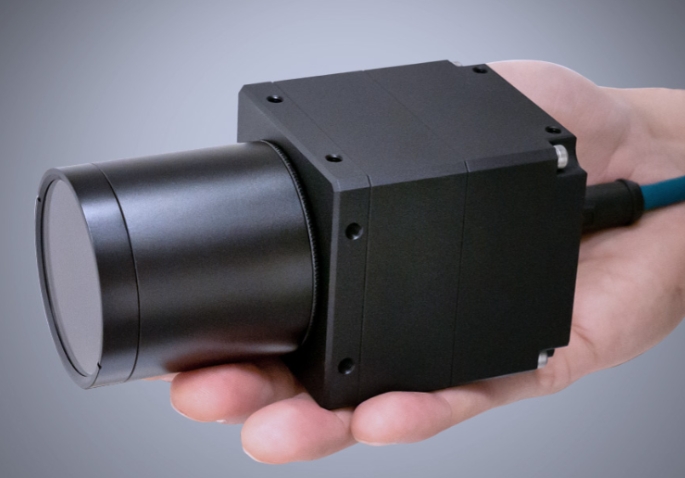

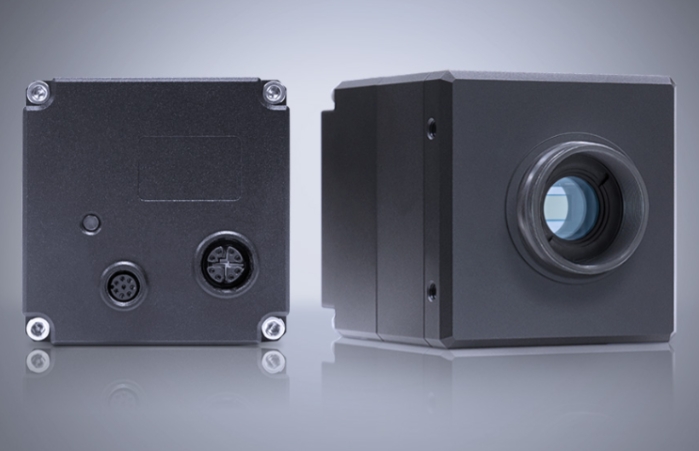

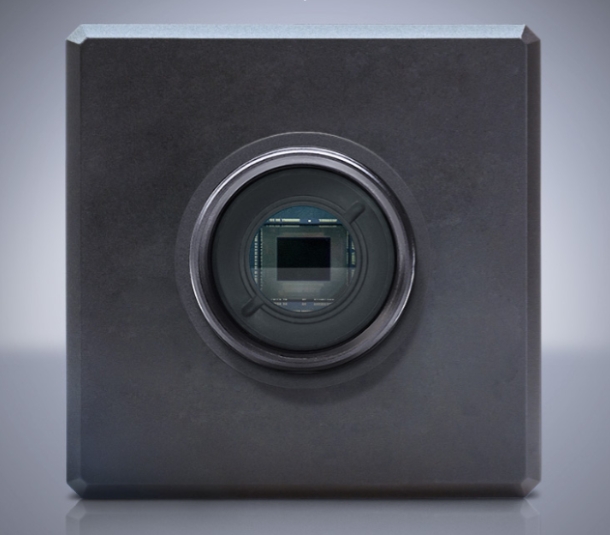

LUCID ATP013S-WC 工业相机
| 传感器特性 |
|---|
| 名称 | Sony IMX990 CMOS | | 快门 | Global | | 靶面尺寸 | 8.2 mm (Type 1/2″) | | 分辨率 | 1280 x 1024 px, 1.3 MP | | 像元尺寸 | 5.0 µm (H) x 5.0 µm (V) | | 帧率 | 84.9 FPS (94.4 FPS) @ 1.3 MP (8 Bit ADC mode)
84.9 FPS (94.4 FPS) @ 1.3 MP (10 Bit ADC mode)
71 FPS (71 FPS) @ 1.3 MP (12 Bit ADC mode) | | 感光范围 | 400nm到1700nm（见EMVA1288表格） |
| 物理特性 |
|---|
| 尺寸 | 60 x 60 x 65 mm | | 镜头接口 | C-Mount | | 重量 | 435 g | | Ingress Protection | IP67 (For IP67 protection Atlas must be used with IP67 lens tube and cables) |
| 接口和电源信息 |
|---|
| 数据接口 | 1000BASE-T, 100BASE-TX
M12, PoE+ | | 数字I/O | 8 pin M8 connector | | 路光耦隔离I/O | 1 input (2.5V-24V and 10.5V-24V), 1 output | | 路双向可配置非隔离I/O | 2 bi-directional | | 功率要求 | PoE+ (IEEE 802.3at) or 18-24 V through GPIO | | 功耗 | <12W via PoE+, 11.5W when powered externally |
| 成像特性 |
|---|
| 缓存容量 | 380 MB | | Image Processing | Gain, gamma, black level, white balance, LUT, pixel correction, hue, saturation | | 数据格式 | Mono8/10/12/16 | | Image Modes | Decimation, ROI, horizontal and vertical flip | | ADC | 8, 10, 12 bit | | 增益范围 | 0 dB to 48 dB analog and digital | | 曝光时间范围 | 20.5 μs to 10 s (Normal) / 2.88 μs to 7.42 μs (Short Mode) |
| 相机功能 |
|---|
| User Sets | 1 default and 2 custom user set | | File System Size | 16 MB | | Chunk Data | Timestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set | | Event Data | Exposure start/end | | Counter & Timer | 2 counters and 2 timers | | Sequencer | Exposure time, gain | | Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| 标准和认证 |
|---|
| 制冷能力 | 温度达30°C
环境温度可达45°C | | 兼容 | GigE Vision v2.0 | | 认证 | CE, FCC, RoHS, REACH, WEEE | | 存储温度 | -30 to 60°C | | 工作温度 | -20 to 55°C | | 湿度 | Operating: 20% ~ 80%, relative, non-condensing | | 冲击和振动标准 | DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6 | | 工业EMC抗扰度 | DIN EN 61000-6-2 | | 保修 | 3 year |
