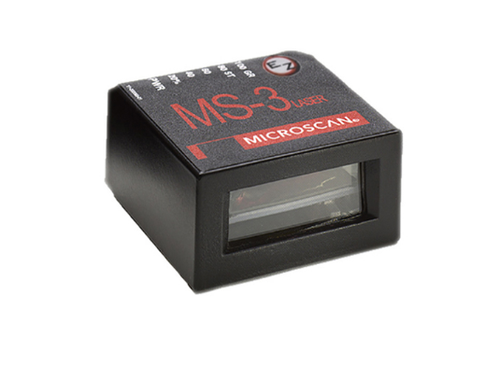

Microscan 迈思肯 MS-3 小型条码扫描器
![4FS()8QMG8AAY@P_3P]9]}C.png](//50005030.s21i.huaweicloudsite.cn/4/ABUIABAEGAAgsK-ptwYo3sLk9gIwpQQ44wI.png "1550129448919717.png")

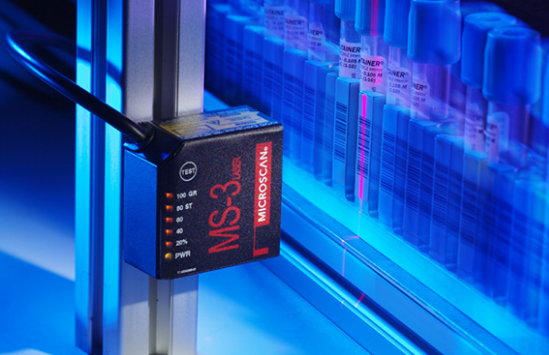

在嵌入式小型条码扫描器中，MS-3 Laser 具有速度最快的读取 性能。70 度的广阔扫描角度，并具有小型的尺寸和灵活的安装方式。 MS-3激光条码扫描仪在嵌入式紧凑型条码扫描器中提供快速的读取性能。 70度的宽扫描角度与超紧凑尺寸和灵活安装相结合。 高性能和灵活性使MS-3成为嵌入式仪器可靠读取的良好选择。 紧凑轻巧：1.75英寸（44.5毫米）方形，85英寸（21.6毫米）高的扫描仪重量只有57克，便于安装在机器人设备或狭小的空间。 高扫描速度：可调节扫描速度从每秒300到1000个解码，欧姆龙迈思肯世界级的解码算法确保每次都能准确读取。 扫描角度宽：超过70度的宽扫描角度和工厂定制的焦点加起来可以节省系统内的空间，从而允许更大的灵活性定位。 可见指示灯：扫描仪顶部的照明LED提供对扫描仪性能的视觉确认。 实时控制：输入包括触发信号，“新主控”输入和用于复位计数器或释放输出的可编程输入。输出可以被配置为在包括匹配码和诊断操作的各种条件下激活。 | Microscan迈思肯MS-3小型条码扫描器型号表 | | Part Number | Description | | FIS-0003-0001G | Laser, Single Line, Low Density | | FIS-0003-0002G | Laser, Single Line, High Density | | FIS-0003-0003G | Laser, Raster, Low Density | | FIS-0003-0004G | Laser, Raster, High Density | | FIS-0003-0005G | Laser, Single Line, Low Density, Right Angle | | FIS-0003-0007G | Laser, Raster, Low Density, Right Angle |
艾韦迅IVYSUN是Microscan迈思肯扫描器的中国区核心经销商，货源充足、确保正品。专业的Microscan迈思肯扫描器产品技术服务团队，确保您采购使用无后顾之忧！购买国际品牌扫描器，请认准技术型服务商：艾韦迅IVYSUN (http://www.ivysun.net)。 Microscan迈思肯MS-3超小型条码扫描器特点高性能与灵活性使 MS-3 Laser 成为嵌入式扫描设备中阅读性能可靠的理想之选。 体积小巧，机身轻盈 高速扫描 广阔的扫描角度 可见指示器 实时控制
| Microscan迈思肯MS-3超小型条码扫描器配件表 | | Part Number | Description | | FIS-0210-0001G | MS-Connect 210, Connectivity Box with Display | | FIS-0210-0002G | MS-Connect 210, Connectivity Box | | FIS-0210-0003G | MS-Connect 210, Connectivity Box with Display and Ethernet | | FIS-0210-0004G | MS-Connect 210, Connectivity Box with Ethernet | | 98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890 | | 98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 | | 98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 | | 61-000127-02 | Cable, MS-2 to MS-Connect 210, 6 ft | | FIS-0001-0030G | IB-3PC Keyboard Wedge/Interface Box | | 98-000051-01 | IC-3USB, USB Conversion Kit | | FIS-0001-0035G | IC-332, Connects MS-2 to IB-131 | | 99-000018-01 | IB-131, Interface Box | | 98-000039-02 | Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer | | 61-300026-03 | Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft | | 61-000010-02 | Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft | | 61-000011-02 | Cable, MS-820 to IB-131 (also use for MS-2, 3, 4, 9, 710 and MINI Extension) | | 61-100029-03 | Cable, IB-131 Daisy Chain, 1 ft | | 20-500013-01 | DeviceNet Protocol Box | | Power Supplies | | 97-000002-01 | Power Supply, 90-264 VAC,+5VDC, USA /Euro Plug (use with IB-3PC) | | 97-100004-15 | Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332) | | Mounting and Connectors | | 98-000048-01 | Mounting Arm/Adapter Kit, 4 inch, MS-2, MS-3 | | 98-000054-01 | Kit, Mounting Stand Base Plate, MS-2, MS-3 | | 98-000053-01 | Extension Kit, 4 inch, MS-2, MS-3 | | 98-000053-02 | Mounting Arm Extension Kit, 3 inch, MS-2, MS-3 | | 98-000060-01 | Kit, Bracket, Side Mount, MS-2, MS-3 | | 98-000059-01 | Kit, Bracket, Angle Mount, MS-2, MS-3 | | 98-000057-01 | Kit, Bracket, Through Hole Mount, MS-2, MS-3 | | 98-000058-02 | Kit, Extended Right Angle Mirror, MS-2, MS-3 | | 98-000061-03 | MS-2, MS-3 to MS-520/MS-525, Bracket Conversion Kit | | 20-610024-01 | Trigger Connector, 4-pin Plug (screw terminal and field wireable for custom wiring into IB-131) | | 20-610020-01 | Power Connector, 3-pin Socket (screw terminal and field wireable for custom wiring into IB-131) | | Package Detector/Sensor | | 99-000017-01 | Photo Sensor, Visible, NPN, DARK ON (for use with IB-131) | | 99-000017-02 | Photo Sensor, Visible, NPN, LIGHT ON (for use with IB-131) | | Software/Manuals | | 37-000001-01 | TOOLS CD, User’s Manuals, ESP Software |
微信/手机： 18938648240 QQ : 1605935956 电话 : 075583317774 Email : 1605935956@qq.com |
