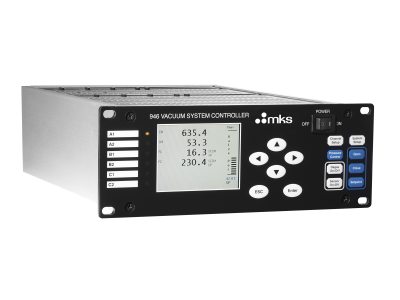

NEWPORT 优铂特 946-US-NANANA-NA 946 Vacuum System Controller
Base Vacuum Gauge Controller, RS232 and RS485, Series 946, US Region
The 946-US-NANANA-NA is a versatile half-rack vacuum gauge measurement and control system. It provides power and simultaneous readout for up to six different vacuum gauges and/or mass flow controllers, with options for controlling pressure.
参数
类型
Vacuum System Controller
显示
320x240 color QVGA TFT LCD with back lighting
真空压力范围
10,000 Torr to 10-11 Torr (Dependent upon sensor type)
设定值继电器
12
继电器触点额定值
2 amps @ 30 VAC
电源要求
100 - 240 VAC 50/60 Hz 150 W maximum
工作温度范围
5-40°C (41-104°F)
存储温度范围
10-55°C (50-131°F)
电接头
United States
CE 认证
Yes
