NEWPORT 优铂特 LV-LSW-P5P21-36X48 激光安全窗口

品牌：	NEWPORT优铂特
型号：	LV-LSW-P5P21-36X48

18938648240

产品详情

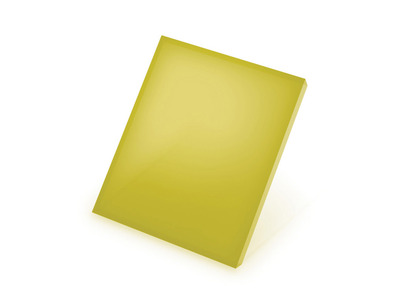

NEWPORT 优铂特 LV-LSW-P5P21-36X48 激光安全窗口

Laser Safety Window, Acrylic, ND:YAG & CO2, 36x48x0.125 in.

概览

The LV-LSW-P5P21-36X48 is a Laser Safety Window made by Laservision one of the largest manufacturers of laser protective products. It is a gold-colored laser protection window with a scratch-resistant coating. It is certified by three standards: EN 207; EN12245 and EN 60825-4). Due to the high ODs in the UV and blue range (OD10+ from 180 nm to 460 nm), the broad and high protection level within the NIR (OD5+ from 815nm to 1100nm; OD8+ from 880nm to 1075nm, and OD10+ from 940 to1055nm) and in the infrared area (OD8 + from 5230 to 14570 nm), the window is suitable for high power diodes as well as for disk, Nd: YAG, fiber or with CO2 lasers. The safety window has good color vision and VLT of appr. 50%. The size is 36” x 48” with a thickness of about 3mm.

技术参数

可见光透过率
50%
滤光片尺寸
36 x 48 in.
滤光片颜色
Gold
滤光片类型
Laservision P5P21
光学密度
OD 10+ @ 180 - 460 nm
OD 3+ @ 780 - <800 nm
OD 4+ @ 800 - <835 nm
OD 6+ @ 835 - <880 nm
OD 8+ @ 880 - <905 nm
OD 9+ @ 905 - <940 nm
OD 10+ @ 940 - 1055 nm
OD 9+ @ >1055 - 1065 nm
OD 8+ @ >1065 - 1075nm
OD 7+ @ >1075 - 1081 nm
OD 6+ @ >1081 - 1090 nm
OD 5+ @ 4780 - 5050nm
OD 8+ @ 5230 - 14570nm
激光器类型
ND:YAG & CO2

厚度
0.125 in.
厚度公差
+/- 0.02 in.
CE
Yes
EN207
D AB9 + IR AB4 + M AB6Y LV 180-315
D AB6 + I AB8 + R AB7 + M ABBY LV >315-460
D AB6 + I AB8 + R AB7 + M ABBY LV >460-464
DIRM AB6 LV >464-468
DIRM ABS LV >468-470
DIRM AB4 LV >470-472
DIRM AB3 LV >472-475 DIN-Gepri.ift DIRM AB2 LV >475-480
DIRM ABl LV >480-490
DIRM ABl LV 720-<755
DIRM AB2 LV 755-<780
DIRM AB3 LV 780-<800
DIRM AB4 LV 800-<815
DIRM ABS LV 815-<835
DIRM AB6 LV 835-<860
DIRM AB7 LV 860-<880
D AB7 + I AB8 + R AB7 + M ABBY LV 880-<905
D AB7 + I AB8 + R AB7 + M ABBY LV 905-<940
D AB7 + I AB8 + R AB7 + M ABBY LV 940-1050
D AB6 + I AB8 + R AB7 + M ABBY LV >1050-1065
D AB6 + I AB8 + R AB7 + M ABBY LV >1065-1075
D AB6 + !RM AB7 LV >1075-1081
DIRM AB6 LV >1081-1090
DIRM ABS LV >1090-1100
DIRM AB4 LV >1100-1110
DIRM AB3 LV >1110-1120
DIRM AB2 LV>1120-1135
DIRM ABl LV >1135-1160
DIRM ABl LV 2255-<2438
DIRM AB2 LV 2438-2467
DIRM ABl LV >2467-259
DIRM ABl LV 2780-<2805
DIRM AB2 LV 2805-2870
DIRM ABl LV >2870-<3053
DIRM AB2 LV 3053-<3116
DI AB3 + R AB3Y + M AB3 LV 3116-<3177
DI AB3 + R AB3Y + M AB4 LV 3177-<3200
DI AB3 + R AB3Y + M AB5Y LV 3200-3510
DI AB3 + R AB3Y + M AB4 LV >3510-3525
DI AB3 + R AB3Y + M AB3 LV >3525-3618
DIRM AB2 LV >3618-3700
DIRM ABl LV >3700-<3933
DIRM AB2 LV 3933-<4010
DI AB3 + R AB3Y + M AB3 LV 4010-<4040
DI AB3 + R AB3Y + M AB4 LV 4040-4195
DIRM AB2 LV >4195-<4390
DI AB3 + R AB3Y + M AB4 LV 4390-<4425
DI AB3 + R AB3Y + M AB6Y LV 4425-4565
DI AB3 + R AB3Y + M AB4 LV >4565-4590
DIRM AB 2 LV >4590-<4780
DI AB3 + R AB3Y + M AB5Y LV 4780-5050
DI AB3 + R AB3Y + M AB4 LV >5050-5230
DI AB3 + R AB3Y + M AB6Y LV >5230-14570
DI AB3 + R AB3Y + M AB4 LV >14570-16460
DI AB3 + R AB3Y + M AB6Y LV >16460-21500
DI AB3 + R AB3Y + M AB4 LV >21500-<23200
DI AB3 + R AB3Y + M AB6Y LV 23200-25000
