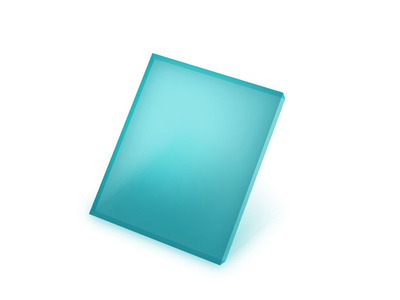

NEWPORT 优铂特 LV-LSW-P5P10-36X48 激光安全窗口
Laser Safety Window, Acrylic, ND:YAG & CO2, 36x48x0.125 in.
概览
The LV-LSW-P5P10-36X48 is a Laser Safety Window made by Laservision one of the largest manufacturers of laser protective products. It is a new blue, absorbing laser protection filter with a scratch-resistant coating. It is certified by three standards: EN 207; EN12245 and EN 60825-4). The protection is based on the absorption of the laser light within the bulk material. The laser protection window has a daylight transmission of approx. 16%, is CE certified. A broadband laser protection exists from 635nm to 11,500nm. It is especially suitable against disc- and fiber lasers with an OD8+ at 1,030-1,400nm (D LB6 + IRM LB8) and against 960nm laser diodes and Nd:YAG lasers. It also exists an additional alignment protection between 635 and 690nm. The size is 36” x 48” with a thickness of about 3mm.
技术参数
厚度
0.125 in.
厚度公差
+/- .02 in.
CE
Yes
EN207
>315-385 D LB6 + IRM LB8 LVU F CE
>385-400 DIRM LB4 LVU F CE
635-<720 DIRM LBl LVU F CE
720-<770 DIRM LB2 LVU F CE
770-<800 DIRM LB3 LVU F CE
800-<840 DIRM LB4 LVU F CE
840-<880 DIRM LB5 LVU F CE
880-<960 DIRM LB6 LVU F CE
960-<1030 D LB6 + IRM LB7 LVU F CE
1030-1400 D LB6 + IRM LB8 LVU F CE
>1400-3600 D LB3 + I LB4 + R LB3Y + M LBl LVU F CE
>3600-4800 DI LB3 + R LB3Y + M LBl LVU F CE
>4800-11500 DI LB4 + R LB3Y LVU F CE
0,01W 2x10E-6J 635-690 RBl LVU F CE
