NEWPORT   优铂特    N-FG1-55     标准激光安全眼镜

品牌: NEWPORT优铂特
型号: N-FG1-55
产品详情

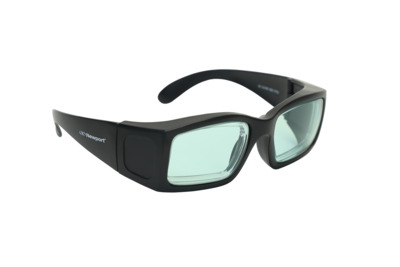

NEWPORT   优铂特    N-FG1-55     标准激光安全眼镜



Rimmed Laser Safety Glasses; YAG, Holmuim YAG, Nd + Ho + ER:YAG




The N-FG1-55 Laser Safety Glasses are Ideal for YAG (1064-1550 nm), Holmuim YAG (2080-2100 nm + 1064 2940 nm), and Nd + Ho + ER:YAG (1064 2940 nm) laser wavelengths. It has a Universal Rimmed frame with light gray color glass lenses. The eyewear is designed to withstand direct laser radiation for short durations while providing excellent field-of-vision lenses with multiple wavelength coverage. 75% VLT (visible light transmission). The Rimmed frame is a comfortable over-the-glass spectacle and has good side shielding. It also comes with a removable Rx insert. This model is CE certified. Meets ANSI Z136.1 and EN207.





参数

  • 框架形式
    Rimmed
  • 可见光透过率
    75%
  • 滤光片颜色
    Light gray
  • 光学密度
    OD3+ @ 850-2800 nm
    OD4+ @ 900-2600 nm
    OD5+ @ 950-1010 nm
    OD7+ @ >1010-1500 nm
    OD5+ @ >1500-2350 nm
    OD5+ @ >2800-10600 nm
  • 激光器类型
    YAG, Holmuim YAG, Nd + Ho + ER:YAG
  • 透镜材料
    Glass
  • CE
    Yes
  • EN207
    850–900 nm (DIR LB3)
    >900–950 + >1400– 2200 nm (DIR LB4)
    >950–1000 nm (DIR LB5)
    >1000–1063 nm (DIR LB6)
    >1063–1400 nm (D LB6 + IRM LB7Y)
    2900–3200 + 10600 nm (DI LB4)
