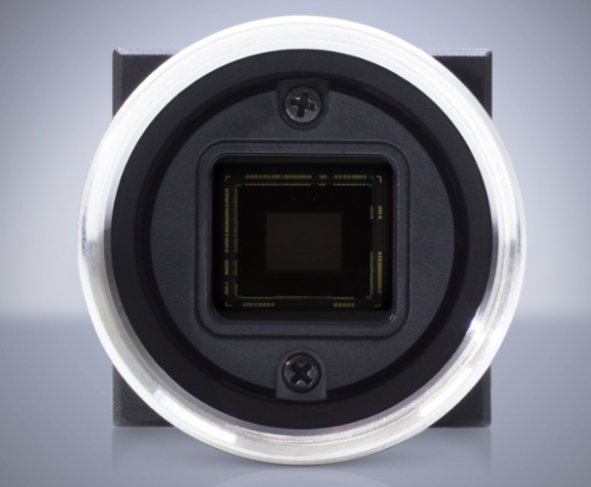

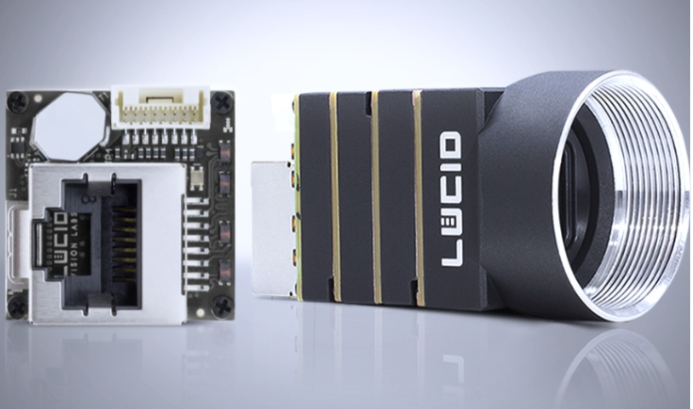

LUCID PHX016S 工业相机
| 传感器特性 |
|---|
| 名称 | Sony IMX273 CMOS | | 快门 | Global | | 靶面尺寸 | 6.3 mm (Type 1/2.9″) | | 分辨率 | 1440 x 1080 px, 1.6 MP | | 像元尺寸 | 3.45 µm (H) x 3.45 µm (V) | | 帧率* | 71.6 FPS (75.8 FPS) @ 1.6 MP |
| 物理特性 |
|---|
| 尺寸 | 24 x 24 x 27.35 mm | | 镜头接口 | C, C-mount的傳感器板, NF, S, 无镜头座 | | 重量 | 30 g |
| 接口和电源信息 |
|---|
| 数据接口 | 1000BASE-T RJ45, PoE
ix Industrial, PoE
FFC, PoE | | 数字I/O | 8 pin JST connector | | 路光耦隔离I/O | 1 input, 1 output | | 路双向可配置非隔离I/O | 2 bi-directional | | 功率要求 | PoE (IEEE 802.3af), or 12-24 VDC external | | 功耗 | 3.1W via PoE, 2.5W when powered externally |
*最大帧率基于10%的 “设备链路吞吐量储备”，用于重新发送数据包。括号（）中的FPS是基于0%的 “设备链路吞吐量储备”。LUCID建议为数据流可靠性保留10%。 | 成像特性 |
|---|
| 缓存容量 | 128 MB | | Image Processing | Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion | | 数据格式 | Mono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411 | | Image Modes | Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip | | ADC | 12 bit | | 增益范围 | 0 dB to 48 dB analog and digital | | 曝光时间范围 | 30 μs to 10 s |
| 相机功能 |
|---|
| User Sets | 1 default and 2 custom user set | | File System Size | 16 MB | | Chunk Data | Timestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set | | Event Data | Acquisition start/end, exposure start/end, line rise/fall, error | | Counter & Timer | 2 counters and 2 timers | | Sequencer | Exposure time, gain | | Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| 标准和认证 |
|---|
| 兼容 | GigE Vision v2.0 | | 认证 | CE, FCC, RoHS, REACH, WEEE | | 存储温度 | -30 to 60°C | | 工作温度 | -10 to 55°C | | 湿度 | Operating: 20% ~ 80%, relative, non-condensing | | 保修 | 3 year |
